 LEDS

Pinball LED bulbs are   a great way to upgrade your CLASSIC PINBALL MACHINES.

       They allow you to personalize your arcade games.

You can experiment with different colour combinations, colour changers, levels of brightness, & flashers.

For GI (general illumination) or those targeted playfield areas, you can find what’s right for you.

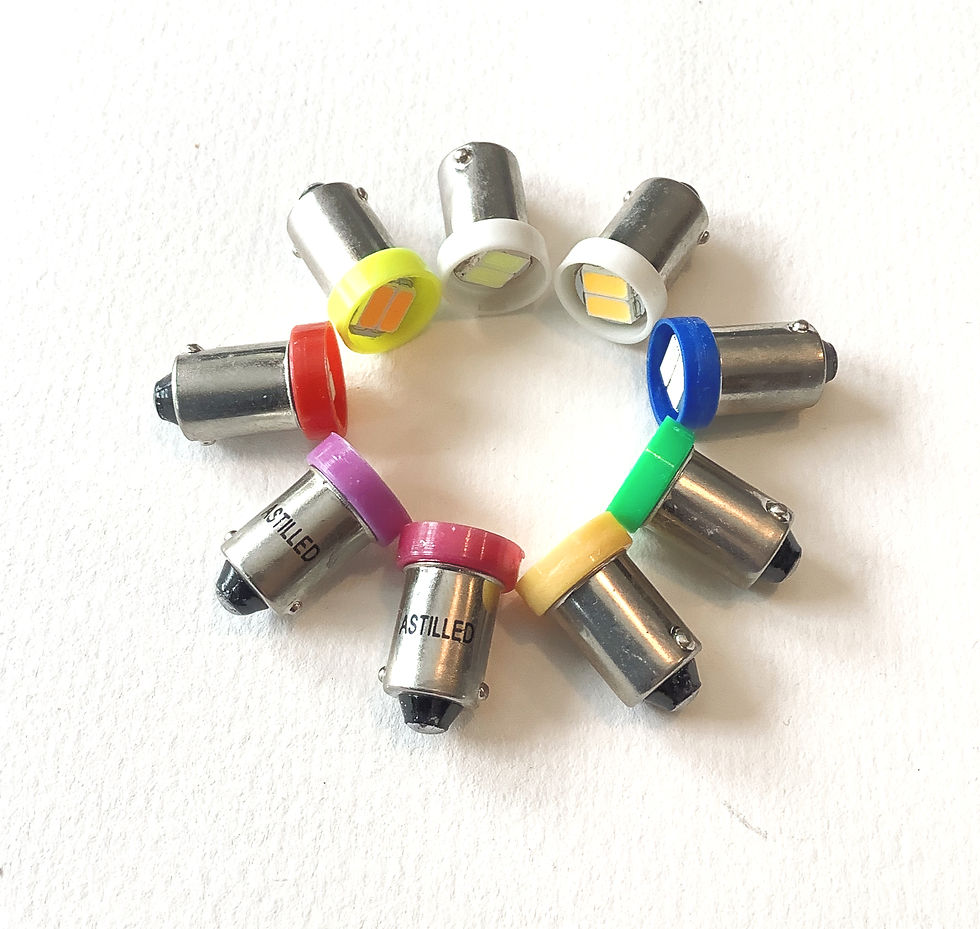

Brighten up & save energy with long lasting ‘ASTILLED’ LED bulbs.

🔴🔴🔴🔴🔴

ADVANTAGES TO CONVERTING TO LEDS:

📍Less power consumption

📍More light

     📍Colour flexibility

 📍Less heat

📍Preserves the backglass & plastics

  📍Much longer life span

   📍Lower operating costs

TWO (2) INSERTION TYPES:

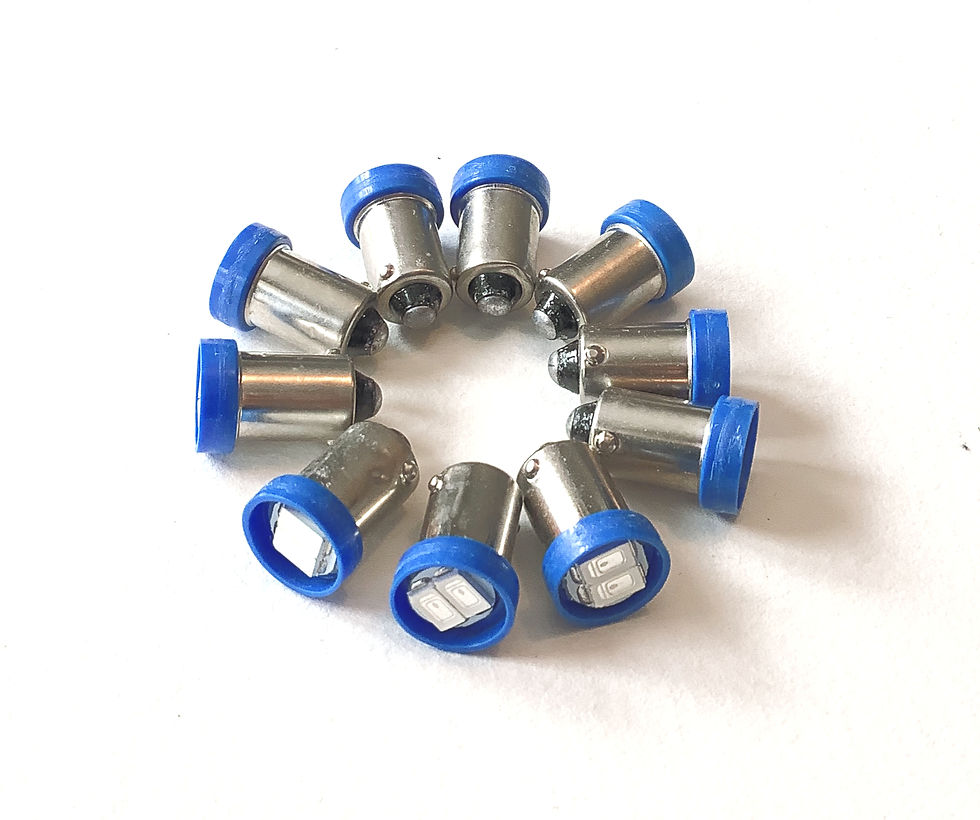

(1) BAYONET -metal base

                                       -push-in & turn

 (2) WEDGE      -plastic base

                      -push-in




LED SUGGESTIONS

GENERAL ILLUMINATION (GI)

Use COOL or WARM WHITE.

ALWAYS use FROSTED DOME bulbs in G.I. lighting.

Less expensive bulbs can be used in G.I. (no-ghost bulbs are not necessary).

🔴BACKGLASS:

 I use 1 SMD FROSTED SMALL DOME (G.I.) bulbs.

(044-01-GI-CW) or (044-01-GI-WW) or in the wedge style                                                                                                         (555-01-GI-CW) or (555-01-GI-WW)

2 SMD FROSTED DOME cause too much glare.

🔴PLAYFIELD:

I use 1 SMD FROSTED SMALL DOME (G.I.) bulbs

(044-01-GI-CW) or (044-01-GI-WW) or in the wedge style                                                                                                         (555-01-GI-CW) or (555-01-GI-WW)


🔴TOP of the PLAYFIELD:
Use 2 SMD FROSTED SMALL DOME bulbs

(044-02-SD-CW) or (044-02-SD-WW) or in the wedge style                                                                                                   (555-02-SD-CW) or (555-02-SD-WW)


or

2 SMD FROSTED DOME (regular size)

(044-02-FD-CW) or (044-02-FD-WW) or in the wedge style                                                                                                     (555-02-FD-CW) or (555-02-FD-WW)

🔴MULTI-LEVEL PLASTICS:

Use 2 SMD FROSTED SMALL DOME

(044-02-SD-CW) or (044-02-SD-WW) or in the wedge style                                                                                                     (555-02-SD-CW) or (555-02-SD-WW)


or

2 SMD FROSTED DOME (regular size)

(044-02-FD-CW) or (044-02-FD-WW) or in the wedge style                                                                                                  (555-02-FD-CW) or (555-02-FD-WW)

PLAYFIELD ILLUMINATION


​You can also colour match LANE GUIDES to make the playfields ‘pop’.

🔴POP BUMPERS are lit up best with the POP BUMPER RING LEDS.

(044-28-BR-whatever colour)

(555-28-BR-whatever colour)

🔴BALL TROUGHS are lit up best with STRIP LIGHTING LEDS.

(044-03-STRIP-whatever colour)

(555-03-STRIP-whatever colour)

(044-10-STRIP-whatever colour)

(555-10-STRIP-whatever colour)

(044-20-STRIP-whatever colour)

(555-20-STRIP-whatever colour)

UNDER PLAYFIELD ILLUMINATION

🔴SMALL INSERTS:

I typically use less expensive bulbs without a dome (ND- no dome).

I use 1 SMD LEDS.

(044-01-ND-whatever colour)

(555-01-ND-whatever colour)

🔴LARGE INSERTS:
To balance the brightness use FROSTED DOME LEDS.

I use 2 SMD LEDS.

(044-02-FD-whatever colour)

(555-02-FD-whatever colour)

I like to colour match the inserts.  For example, an orange or pink LED under an orange ‘extra ball when lit’ insert ***looks fantastic***


🔴FLEXI bulbs are used when a socket is mounted horizontally.

(044-01-FX-whatever colour)

(555-01-FX-whatever colour)



WARNING:

🚫🚫NEVER  use METAL TOOLS  under the playfield with the POWER ON🚫🚫

                          ALWAYS remove/replace bulbs with the POWER OFF.
